6 Special cases of processes

So far every technology took one fuel and made one product. Real conversion processes are messier: they consume several inputs, emit or co-produce several outputs, and often serve a service demand (tonnes of steel, vehicle-kilometres) rather than an energy commodity. Three recurring patterns cover most of it.

source("R/workshop-model.R")

Two ideas do the heavy lifting throughout:

The conversion chain. Inside a technology, input → use → activity → output, governed by three coefficient sets in ceff: cinp2use (fuel → common energy basis), use2cact (→ the central activity variable that all costs and capacity attach to), and cact2cout (activity → each output). All default to 1; unit conversions live here.
Auxiliary flows (aux + aeff). Anything that rides alongside the main conversion — an emission produced, a by-product recovered, water consumed — is an aux flow, linked by a coefficient named <driver>2a<out|inp> (e.g. act2ainp = consumed per unit activity, cout2aout = produced per unit output).

Technology specifications. The processes below are stored as YAML techspec files under tech_specs/. Read one with read_techspec(), check it with tech_spec_issues(), and build the newTechnology() object with tech_from_spec() — the same round-trip the interactive process-designer GUI uses.

A recurring trap: a service demand needs its own commodity before a newDemand() can reference it, and its unit/timeframe must match. Model the service (hydrogen, steel, vehicle-km) as a newCommodity, have the process produce it, and pull it with a demand.

6.1 Electrolyser — electricity → hydrogen

The flexible load of Section 5.4, built properly: a PEM electrolyser that consumes electricity, produces hydrogen, and recovers heat as a co-product. The spec is tech_specs/FPEM100.yml (a DEA-catalogue 100 MW unit, in GWh), with efficiency that improves by vintage (see Section 4.4).

ELY <- tech_from_spec("tech_specs/FPEM100.yml")

draw(ELY) # electricity in; hydrogen and heat out

Learning goal: a single-input, multi-output conversion (H₂ + heat) with vintaged efficiency; adding water as a consumed aux (act2ainp) is a one-line extension. Reuse it as the time-flexible load whose siting follows the renewables.

Exercises (to finish): 4.1 draw() the electrolyser and read its vintaged cact2cout for H₂; 4.2 screen its LCOE with levcost() at a few electricity prices; 4.3 drop it into the Section 5.4 model as the flexible load and confirm it sites with the renewables.

6.2 Blast furnace — iron & steel

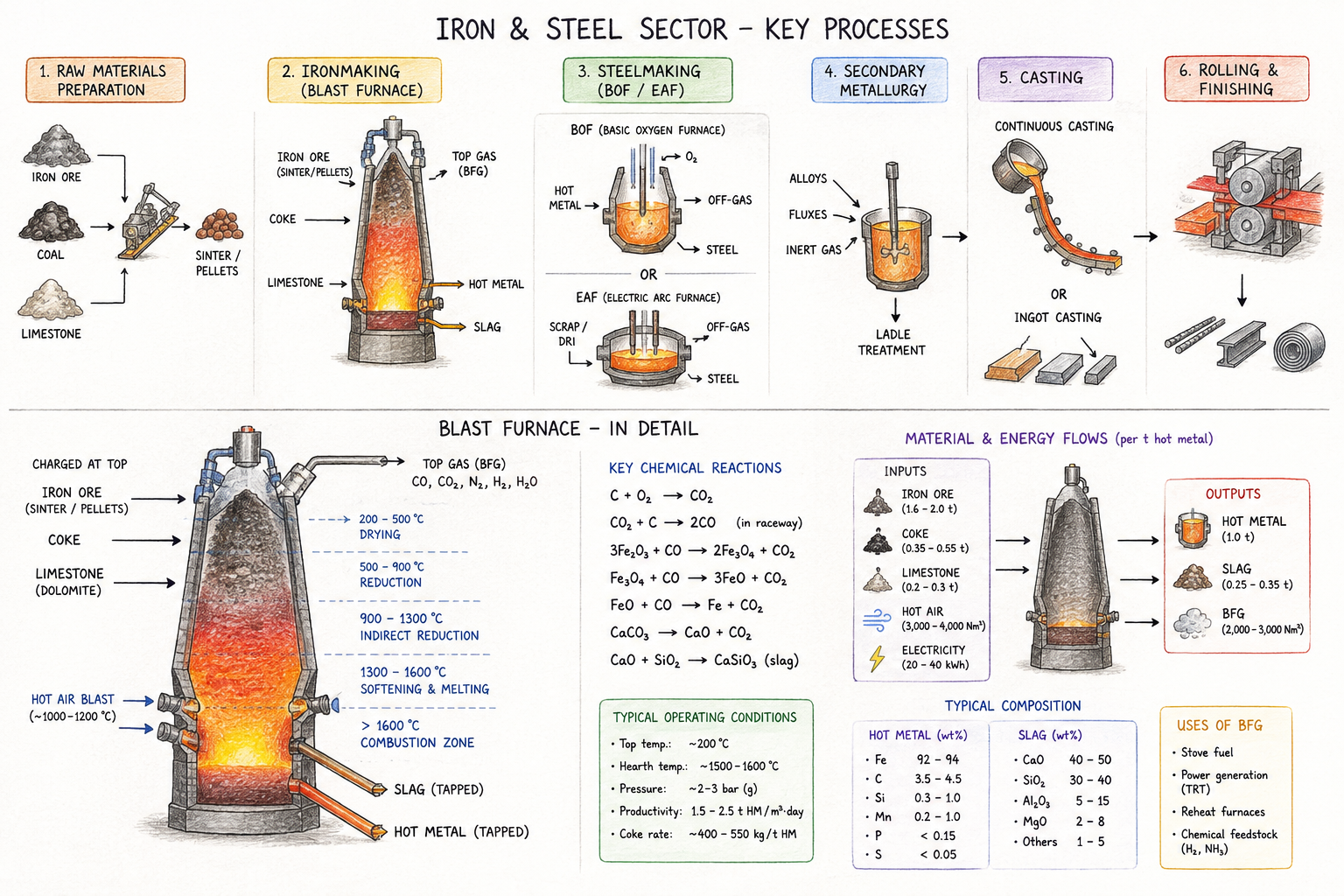

A genuinely multi-input, multi-output process: iron ore, coke, and fluxes in; pig iron out, with blast-furnace gas and slag as co-products and process CO₂ from the coke.

Learning goal: several inputs, some in an input group with shares (ore + scrap), combustion on the reductant to book process CO₂, and co-products as aux (cout2aout); the chain closes on a STEEL service demand.

IRON <- newCommodity("IRON", unit = "Mt", timeframe = "ANNUAL")

BF <- newTechnology(
  name   = "BF",
  desc   = "Blast furnace",
  input  = list(
    comm       = c("IRON_ORE", "COKE", "SCRAP"),
    group      = c("i", NA, "i"),      # ore + scrap interchangeable
    unit       = c("Mt", "PJ", "Mt"),
    combustion = c(0, 1, 0)            # coke burns -> CO2
  ),
  output = list(comm = "IRON", unit = "Mt"),
  aux    = list(acomm = c("BF_GAS", "SLAG"), unit = c("PJ", "Mt")),
  aeff   = data.frame(
    comm     = c("IRON", "IRON"),
    acomm    = c("BF_GAS", "SLAG"),
    cout2aout = c(3.25, 0.20)          # co-product yields per unit iron
  ),
  ceff   = data.frame(
    comm      = c("IRON_ORE", "COKE", "SCRAP"),
    cinp2use  = c(NA, 9.30, NA),
    cinp2ginp = c(1.2, NA, 0.155)
  ),
  olife  = 20L
)

draw(BF) # ore + coke in; iron, blast-furnace gas and slag out

Exercises (to finish): 4.4 draw() the furnace and trace ore/coke in, iron/gas/slag out; 4.5 add a scrap-fed electric-arc route (EAF, electricity as aux via cout2ainp) and compare their CO₂ per tonne — a preview of decarbonising heavy industry.

6.3 Light-duty vehicles — fuel → mobility

A process whose output is a service: passenger-kilometres, not energy. Three real specs ship in tech_specs/ (converted to GWh): a battery-electric, a diesel, and a gasoline-hybrid car fleet, each producing highway and city passenger-km (PLDVHWY / PLDVCTY) from its fuel.

LDV_BEV <- tech_from_spec("tech_specs/LDV_BEV.yml")
LDV_DSL <- tech_from_spec("tech_specs/LDV_DSL.yml")
LDV_HYB <- tech_from_spec("tech_specs/LDV_HYB.yml")

draw(LDV_BEV) # electricity in; highway + city passenger-km out

Learning goal: a service-demand commodity in MPKm, the fuel-economy conversion carried on use2cact/cap2act so energy, activity and capacity agree, and a highway/city output split by share.

Exercises (to finish): 4.6 build the three fleets, draw() each, and check the energy identity vTechInp * cinp2use == vTechOut / (use2cact * cact2cout); 4.7 give them a shared PLDVHWY/PLDVCTY demand and let the model choose the fleet mix under a fuel price and, later, a carbon price.

6.4 Build your own

Three processes, three diagrams, no code — your turn to turn each picture into a technology. Build it by hand (newTechnology(), or a YAML techspec like those in tech_specs/) or, more easily, with the interactive process designer, which lets you wire ports and blocks visually and exports a validated techspec:

process_designer() # launch the Shiny techspec editor

The process designer’s online / AI-assisted features (auto-drafting a spec from a description or a diagram) need API keys that are not set up for the course yet — we will cover those next session. The manual ports-and-blocks editor, and everything in these exercises, works without them.

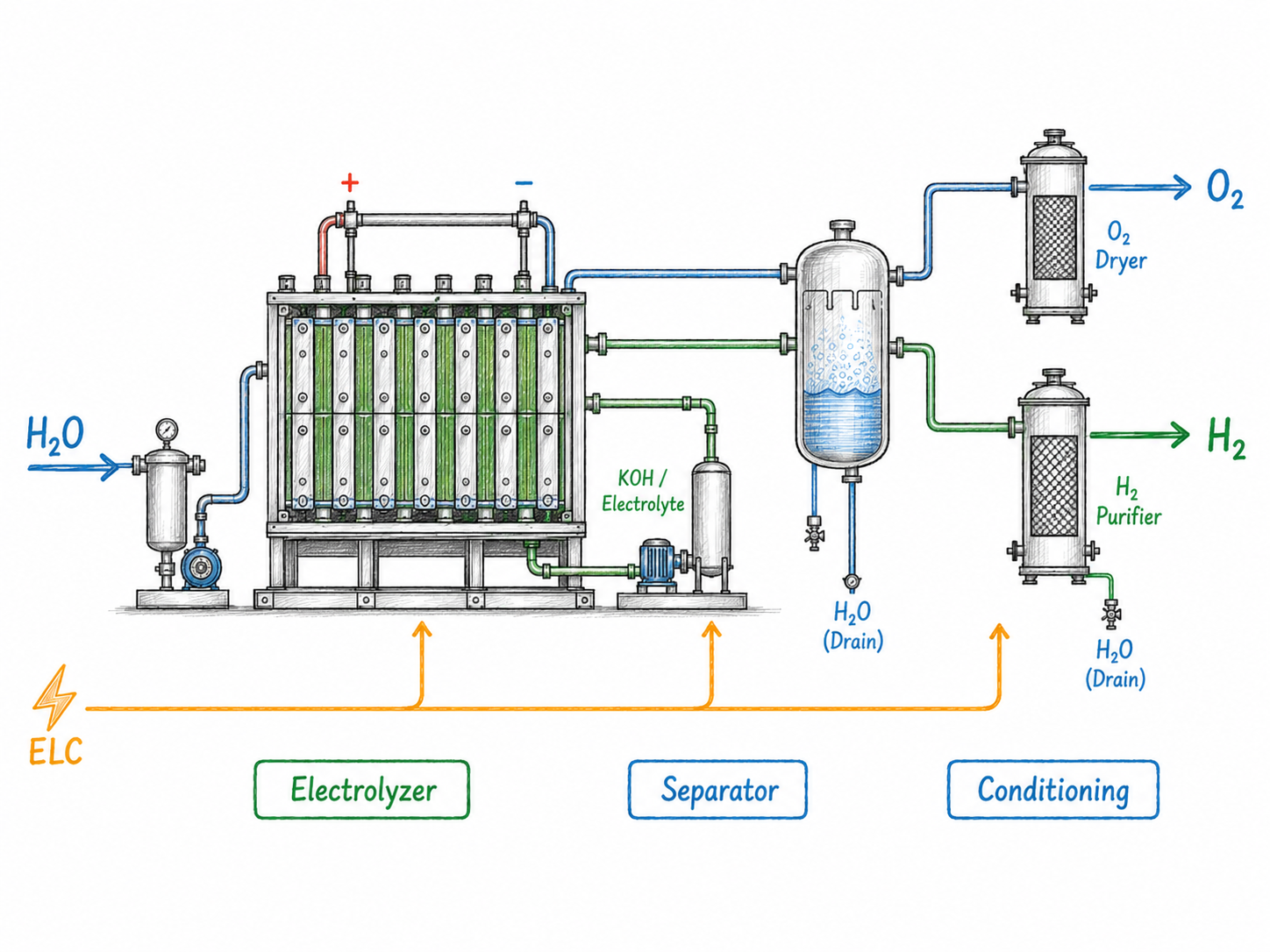

4.8 — An alkaline electrolyser. Build the alkaline counterpart to the PEM electrolyser of Section 6.1 from the diagram below: electricity in, hydrogen out, with its own efficiency, capital cost and (optionally) a water input. Give it vintages so its efficiency improves over time, then compare its levcost() with FPEM100’s.

4.9 — Power-to-liquid e-synfuel (RWGS + Fischer–Tropsch). A multi-step power-to-liquid route: hydrogen and captured CO₂ are combined — reverse water-gas shift to syngas, then Fischer–Tropsch synthesis — into a synthetic liquid fuel, with heat and tail gas as co-products. Build it as one technology with several inputs and several outputs: H2 and CO2 in, the e-fuel out, heat/tail-gas as aux (cout2aout). It is the natural downstream of the electrolyser — the hydrogen it consumes is what Section 6.1 produces.

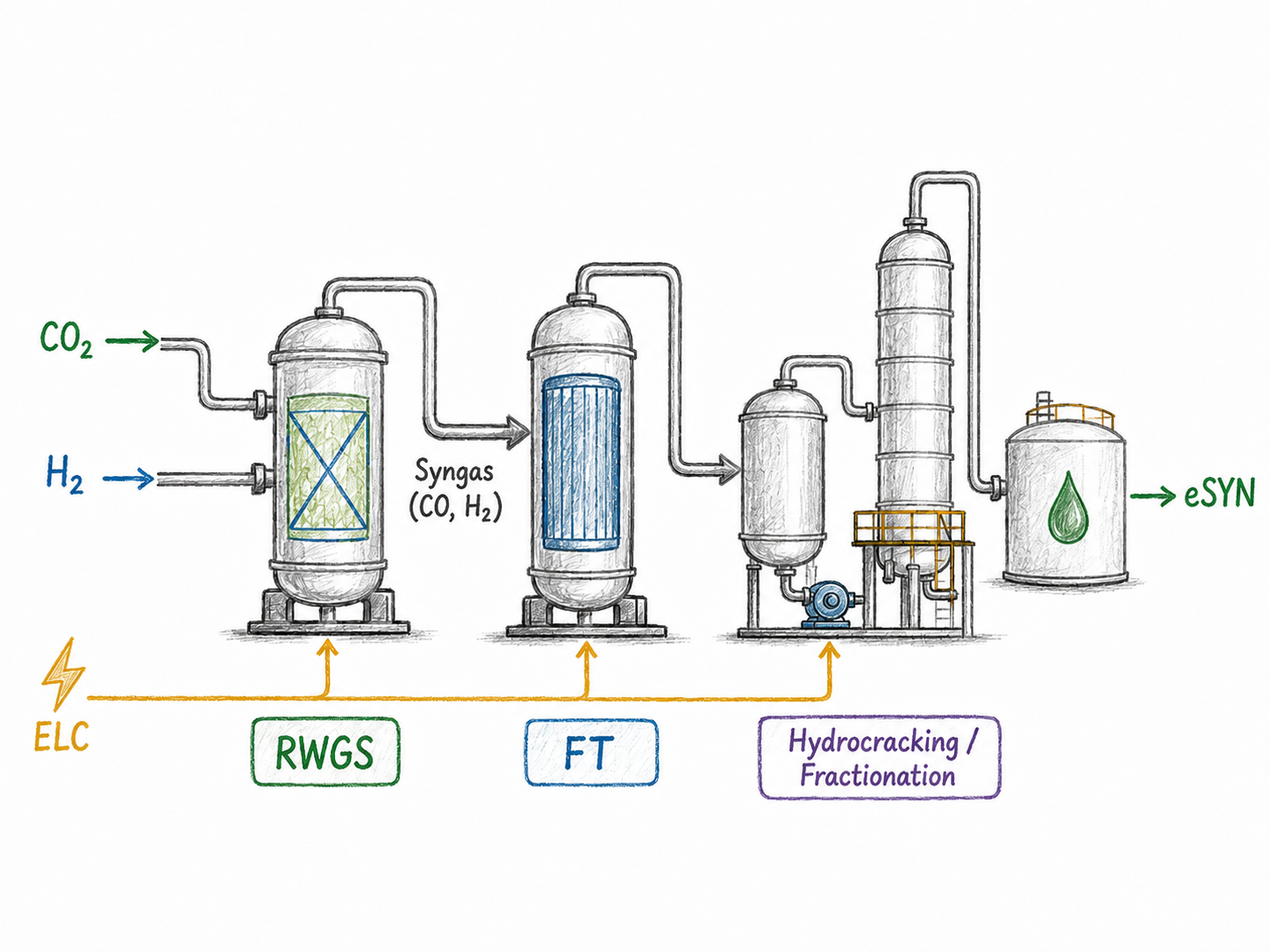

Reverse water-gas shift + Fischer–Tropsch e-synfuel process.

4.10 — A plug-in hybrid vehicle (PHEV). A dual-fuel vehicle that draws both electricity and gasoline. Starting from the LDV_BEV and LDV_HYB specs in tech_specs/, build a PHEV that consumes the two fuels as an input group with a share split, still producing PLDVHWY/PLDVCTY passenger-km, and add it to the fleet-mix comparison of exercise 4.7.

6.5 Where this connects

The electrolyser is the flexible load of Section 5.4 — the same object, now with its real conversion and vintaged efficiency.
Groups + shares (blast-furnace fuels, vehicle highway/city split) are the structural step beyond chapters 1–3 — and, since the grouped input/output balance now solves on GLPK, the blast furnace can be run, not just drawn, once its parameters are in.
Everything here is pure LP and solves on GLPK once the specs are validated and wired to demands — none of it needs another backend.

To be completed with worked, solvable solutions before the session — the process-designer GUI builds and edits these specs interactively.
